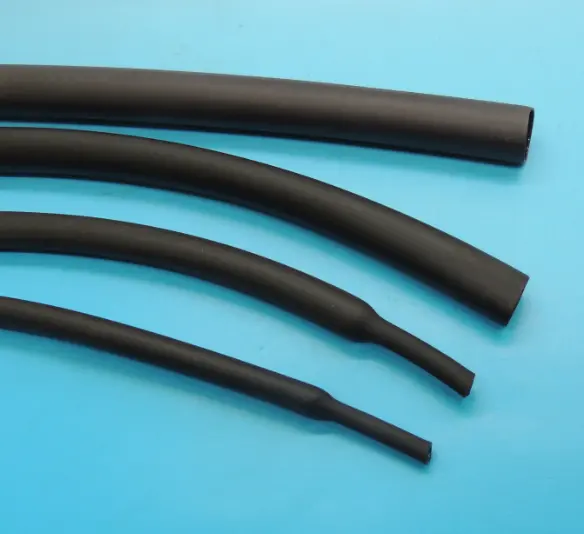

Viton Fluororubber Heat Shrink Tubing-SBD-SWHF-VT

SBD-SWHF-VT

Model Number: SBD-SWHF-VT

The viton fluororubber is made of fluororubber and polymer elastomer by radiation modification. It can be used at high temperature for a long time, resistant to diesel, aviation fuel and high temperature resistant fluid.

Usage

It can be used for military vehicles, high-speed rail trains, ship equipment or commercial cable terminals, and separation of joints.

Features

1. Shrink Ratio:2:1;

2. Initial shrinkage temperature: >=100℃;

3. Complete shrinkage temperature: >=175℃

3. Operation temperature:-55℃～200℃.

4. Oil and solvent resistant, high flame retardant, soft and flexible

Request Quote Download

Specification

Property	Test Method	Standard
Tensile strength(Mpa)	ASTM-D 638	≥8.5Mpa
Breaking elongation	ASTM-D 638	≥250%
Operation temperature range	IEC 60216	-55℃～200℃
Heat aging/Breaking elongation	168hrs x 250℃	≥200%
Heat shock	4hrs x 300℃	No cracking
Disruptive strength	IEC 60243	≥15kV/mm
Volume resistivity	IEC 60093	1x 109Ω.cm
Flame resistance	UL 224 VW-1	Pass

Dimension

Size		As Supplied	After Recovery		Tubing shape	Standard Package m/spool
Inch	mm	Internal Diameter (mm)	Internal Diameter	Wall Thickness
3/32	2.4	≥2.4	≤1.2	0.70±0.20	Round	200
1/8	3.2	≥3.2	≤1.6	0.76±0.20	Round	200
3/16	4.8	≥4.8	≤2.4	0.89±0.20	Round	100
1/4	6.4	≥6.4	≤3.2	0.89±0.20	Round	100
3/8	9.5	≥9.5	≤4.8	0.89±0.20	Round	50
1/2	12.7	≥12.7	≤6.4	0.89±0.20	Flat	25
3/4	19.1	≥19.1	≤9.5	1.07±0.30	Flat	25
1	25.4	≥25.4	≤12.7	1.25±0.30	Flat	25
1-1/2	38.1	≥38.1	≤19.0	1.4±0.30	Flat	25
2	50.8	≥50.8	≤25.4	1.65±0.30	Flat	25
