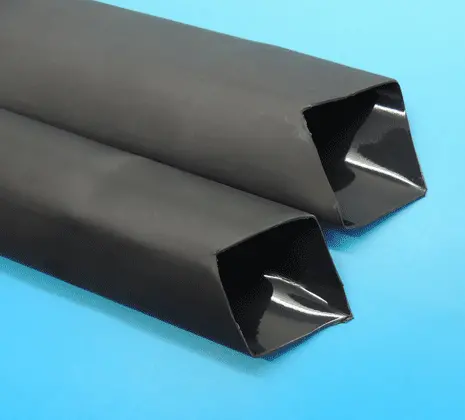

Heavy Wall Heat Shrinkable Tube (with/without adhesive) SBD-DWGW & SBD-SWHFW
Model Number: SBD-DWGW & SBD-SWHFW
Working temperature: -45ºC ~ 125ºC
Structure
Heavy wall heat shrinkable tube is manufactured by co-extrusion polyolefin and environment friendly hot-melt adhesive. It is designed to provide both insulation and sealing for protected articles. Both adhesive –lined and without adhesive are available.
Characteristics
It has heavy wall, semi-rigid, sealing, insulation, damp proof performances. It is mainly used in electrons, electricity, telecommunications, automobile, shipping, aerospace manufacturing etc.
Usage
1.Shrink ratio: 3:1
2.Shrink temperature: 70ºC ~ 125ºC
3.Heavy wall, semi-rigid, insulated, excellent sealing performance
Specification
Dimension
1) Flame Retardant Heavy Wall Heat Shrinkable Tube with Adhesive Lined
Inner Diameter (mm) | ID As Supplied (mm) | After Recovery(mm) | Standard Package (m/pcs) | |||
ID | Outer Layer Thickness | Adhesive Thickness | Whole Wall Thickness | |||
9/3 | ≥9 | ≤3 | 2.0±0.20 | 0.35±0.10 | 2.30±0.25 | 1.22 |
13/4 | ≥13 | ≤4 | 2.4±0.20 | 0.35±0.10 | 2.75±0.25 | 1.22 |
20/6 | ≥20 | ≤6 | 2.5±0.20 | 0.40±0.10 | 2.90±0.25 | 1.22 |
28/9 | ≥28 | ≤9 | 2.5±0.20 | 0.40±0.10 | 2.90±0.25 | 1.22 |
33/10.2 | ≥33 | ≤10.2 | 3.2±0.20 | 0.40±0.10 | 3.60±0.25 | 1.22 |
38.1/12 | ≥38.1 | ≤12 | 3.4±0.20 | 0.60±0.15 | 4.00±0.30 | 1.22 |
43.2/12 | ≥43.2 | ≤12 | 4.3±0.20 | 0.70±0.20 | 5.00±0.35 | 1.22 |
55/16 | ≥55 | ≤16 | 4.3±0.20 | 0.70±0.20 | 5.00±0.35 | 1.22 |
75/22 | ≥75 | ≤22 | 4.3±0.20 | 0.70±0.20 | 5.00±0.35 | 1.22 |
85/25 | ≥85 | ≤25 | 4.3±0.20 | 0.70±0.20 | 5.00±0.35 | 1.22 |
105/30 | ≥105 | ≤30 | 4.3±0.20 | 0.80±0.25 | 5.10±0.35 | 1.22 |
120/36 | ≥120 | ≤36 | 4.3±0.20 | 0.80±0.25 | 5.10±0.35 | 1.22 |
130/36 | ≥130 | ≤36 | 4.3±0.20 | 0.80±0.25 | 5.10±0.35 | 1.22 |
140/42 | ≥140 | ≤42 | 4.3±0.20 | 0.80±0.25 | 5.10±0.35 | 1.22 |
2) Flame Retardant Heavy Wall Heat Shrinkable Tube without Adhesive Lined
Inner Diameter (mm) | ID As supplied (mm) | After Recovery(mm) | Standard Package (m/pcs) | |
ID | Whole Wall Thickness | |||
9/3 | ≥9 | ≤3 | 2.30±0.25 | 1.22 |
13/4 | ≥13 | ≤4 | 2.75±0.25 | 1.22 |
20/6 | ≥20 | ≤6 | 2.90±0.25 | 1.22 |
28/9 | ≥28 | ≤9 | 2.90±0.25 | 1.22 |
33/10.2 | ≥33 | ≤10.2 | 3.60±0.25 | 1.22 |
38.1/12 | ≥38.1 | ≤12 | 4.00±0.30 | 1.22 |
43.2/12 | ≥43.2 | ≤12 | 5.00±0.35 | 1.22 |
55/16 | ≥55 | ≤16 | 5.00±0.35 | 1.22 |
75/22 | ≥75 | ≤21 | 5.00±0.35 | 1.22 |
85/25 | ≥85 | ≤25 | 5.00±0.35 | 1.22 |
105/30 | ≥105 | ≤30 | 5.10±0.35 | 1.22 |
120/36 | ≥120 | ≤36 | 5.10±0.35 | 1.22 |
130/36 | ≥130 | ≤36 | 5.10±0.35 | 1.22 |
140/42 | ≥140 | ≤42 | 5.10±0.35 | 1.22 |
Color: Standard color is black (other color available upon request).
