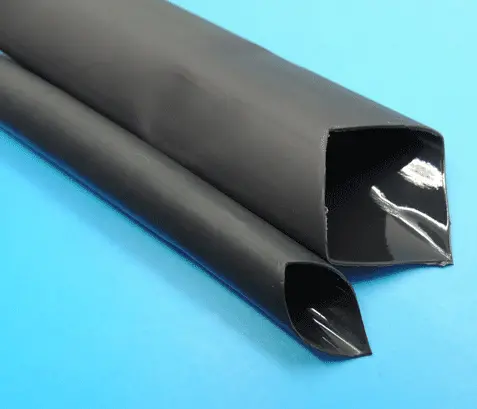

Medium Wall Heat Shrinkable Tube(with/without adhesive) SBD-DWGM & SBD-SWHFM
Model number: SBD-DWGM & SBD-SWHFM
Working temperature: -45ºC ~ 125ºC
Structure
Medium wall heat shrinkable tube is manufactured by co-extrusion polyolefin and environmental friendly hot-melt adhesive. It is designed to provide both insulation and sealing for protected articles. Both adhesive-lined and without adhesive are available.
Usage
It has semi-rigid, electrical insulation, mechanical protection and sealing damp proof functions. It is mainly used in electrons, electricity, telecommunications, automobile, shipping, aerospace manufacturing etc.
Characteristics
1. Shrink ratio: 3:1
2. Shrink temperature: 70ºC ~ 125ºC
3. Semi-rigid, insulated, excellent sealing performance
Standards
1) Standard: RoHS and Reach approval
2) Our normal color is black (other color available upon request)
Specification
Dimension
1) Flame Retardant Heat Shrinkable Tube with Adhesive Lined
Inner Diameter (mm) | ID As Supplied (mm) | After Recovery(mm) | Standard Package (m/pcs) | |||
ID | Out Layer Thickness | Adhesive Layer Thickness | Whole Wall Thickness | |||
10.2/3.0 | ≥10.2 | ≤3.0 | 1.4±0.20 | 0.35±0.10 | 1.75±0.25 | 1.22 |
16/5.0 | ≥16 | ≤5.0 | 1.5±0.20 | 0.40±0.10 | 1.90±0.25 | 1.22 |
19.1/5.6 | ≥19.1 | ≤5.6 | 2.0±0.20 | 0.45±0.10 | 2.45±0.25 | 1.22 |
25/8 | ≥25 | ≥8.0 | 2.0±0.20 | 0.45±0.10 | 2.45±0.25 | 1.22 |
28/6 | ≥28 | ≥6.0 | 2.5±0.20 | 0.65±0.10 | 3.10±0.30 | 1.22 |
28/9 | ≥28 | ≤9.0 | 2.0±0.20 | 0.50±0.10 | 2.60±0.25 | 1.22 |
35/10.2 | ≥35 | ≤10.2 | 2.2±0.20 | 0.78±0.10 | 2.70±0.25 | 1.22 |
38.1/12 | ≥38.1 | ≤12.0 | 2.2±0.20 | 0.50±0.10 | 2.70±0.25 | 1.22 |
43.2/12.7 | ≥43.2 | ≤12.7 | 2.2±0.20 | 0.50±0.10 | 2.70±0.25 | 1.22 |
52.1/16 | ≥52.1 | ≤16.0 | 2.3±0.25 | 0.50±0.15 | 2.80±0.30 | 1.22 |
63/19 | ≥63 | ≤19.0 | 2.5±0.25 | 0.50±0.15 | 3.00±0.30 | 1.22 |
75/22 | ≥75 | ≤22.0 | 2.6±0.25 | 0.50±0.15 | 3.00±0.30 | 1.22 |
85/25 | ≥85 | ≤25.0 | 2.8±0.30 | 0.50±0.15 | 3.30±0.30 | 1.22 |
95/29 | ≥95 | ≤29.0 | 3.1±0.30 | 0.60±0.20 | 3.70±0.35 | 1.22 |
115/34 | ≥115 | ≤34.0 | 3.1±0.30 | 0.60±0.20 | 3.70±0.35 | 1.22 |
140/42 | ≥140 | ≤42.0 | 3.1±0.30 | 0.60±0.20 | 3.70±0.35 | 1.22 |
160/48 | ≥160 | ≤48.0 | 3.1±0.30 | 0.60±0.20 | 3.70±0.35 | 1 |
175/58 | ≥175 | ≤58.0 | 3.1±0.30 | 0.60±0.20 | 3.70±0.35 | 1 |
200/60 | ≥200 | ≤60.0 | 3.1±0.30 | 0.60±0.20 | 3.70±0.35 | 1 |
230/69 | ≥230 | ≤69.0 | 3.1±0.30 | 0.60±0.20 | 3.70±0.35 | 1 |
2) Flame Retardant Heat Shrinkable Tube without Adhesive Lined
Inner Diameter (mm) | ID As Supplied (mm) | After Recovery(mm) | Standard Package (m/pcs) | |
ID | Wall Thickness | |||
6/2 | ≥6.0 | ≤2.0 | 1.80±0.25 | 1.22 |
10.2/3.0 | ≥10.2 | ≤3.0 | 1.75±0.25 | 1.22 |
16/5.0 | ≥16 | ≤5.0 | 1.90±0.25 | 1.22 |
19.1/5.6 | ≥19.1 | ≤5.6 | 2.45±0.25 | 1.22 |
25/8 | ≥25.0 | ≥8 | 2.45±0.25 | 1.22 |
28/9 | ≥28.0 | ≤9 | 2.60±0.25 | 1.22 |
35/10.2 | ≥35.0 | ≤10.2 | 2.70±0.25 | 1.22 |
38.1/12 | ≥38.1 | ≤12 | 2.70±0.25 | 1.22 |
43.2/12.7 | ≥43.2 | ≤12.7 | 2.70±0.25 | 1.22 |
52.1/16 | ≥52.1 | ≤16 | 2.80±0.30 | 1.22 |
63/19 | ≥63.0 | ≤19 | 3.00±0.30 | 1.22 |
75/22 | ≥75.0 | ≤22 | 3.00±0.30 | 1.22 |
85/25 | ≥85.0 | ≤25 | 3.30±0.30 | 1.22 |
95/29 | ≥95.0 | ≤29 | 3.70±0.35 | 1.22 |
115/34 | ≥115 | ≤34 | 3.70±0.35 | 1.22 |
140/42 | ≥140 | ≤42 | 3.70±0.35 | 1.22 |
Color: Standard color is black (other color available upon request).
