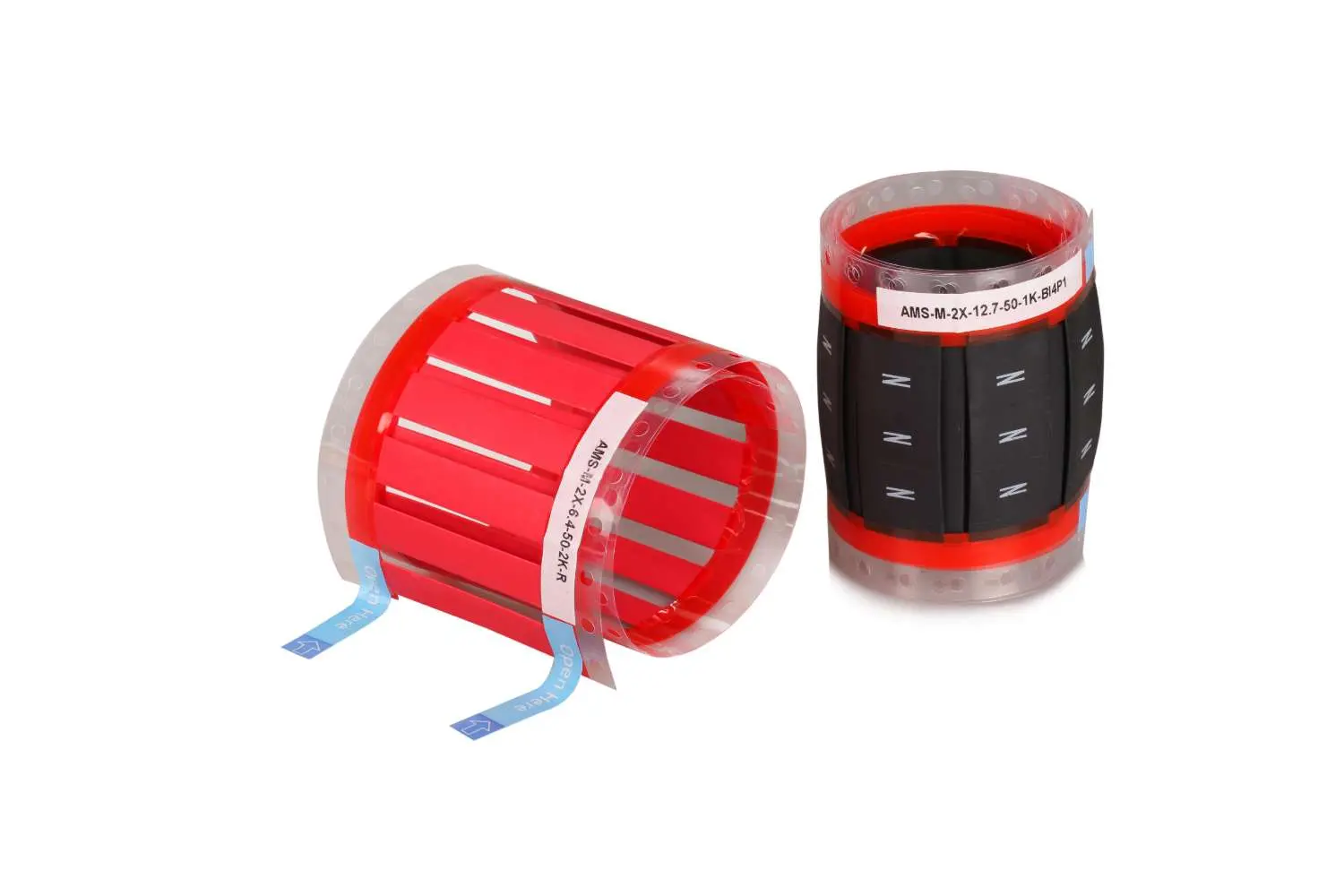

Military Grade Heat Shrink Marker Sleeve
Model number：SBD-SWHF-MG
Working temperature: -55ºC ~ +135 ºC
Structure
Military grade heat shrink marker sleeve is developed environment-friendly flame retardant heat shrinkable tube, using specially designed formulation of high polymers, through cross-link by electronic accelerator and continuous expansion.
Usage
SB-SWHF-MG markers are widely used in military industry, aerospace and marine.
Characteristics
Material | The sleeving shall be fabricated from irradiated, thermally stabilized and flame retarded modified polyolefin compound |
Application range | Military industry; Aerospace & defense; Marine; |
Operating temperature range | -55ºC ~ +135ºC |
Minimum recovery temperature | +85ºC |
Maximum storage temperature | +50ºC |
Shrink ratio | 2:1, 3:1 |
Color | White, Yellow, other color is available if ordered |
Printing mode | Single sided printing and Double sided printing formats available |
Supplied mode | Either Continuous type or Ladder format type is available |
Recommended Printers | Either Thermal transfer printer or Laser printer is OK. |
Specification

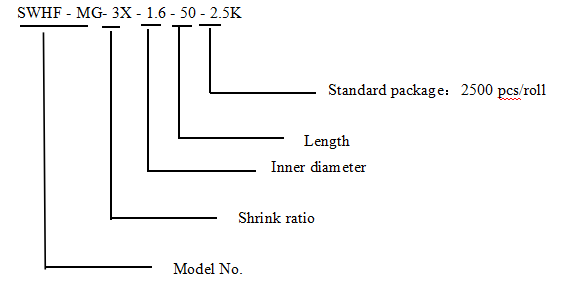

Specification: Shrink ratio-2X
Model Number | As Supplied (mm) | After Recovery(mm) | |||
ID(D) | Flatten Width(W2) | Double Wall Thickness | ID(d) | Single Wall Thickness | |
SWHF-MG-2X-1.6-50-2.5K | 2.00±0.20 | 3.7±0.3 | 0.48±0.10 | ≤0.79 | 0.45±0.06 |
SWHF-MG-2X-2.4-50-2.5K | 2.79±0.20 | 5.0±0.3 | 0.48±0.10 | ≤1.18 | 0.49±0.06 |
SWHF-MG-2X-3.2-50-2.0K | 3.64±0.23 | 6.3±0.4 | 0.48±0.10 | ≤1.59 | 0.51±0.06 |
SWHF-MG-2X-4.8-50-2.0K | 5.26±0.25 | 8.9±0.4 | 0.49±0.10 | ≤2.36 | 0.54±0.06 |
SWHF-MG-2X-6.4-50-1.5K | 6.92±0.28 | 11.5±0.4 | 0.50±0.10 | ≤3.18 | 0.56±0.06 |
SWHF-MG-2X-9.5-50-1.0K | 10.2±0.32 | 16.7±0.5 | 0.51±0.11 | ≤4.75 | 0.59±0.06 |
SWHF-MG-2X-12.7-50-1.0K | 13.5±0.36 | 21.8±0.6 | 0.52±0.11 | ≤6.35 | 0.60±0.07 |
SWHF-MG-2X-19-50-0.5K | 20.1±0.40 | 32.2±0.6 | 0.53±0.11 | ≤9.53 | 0.62±0.07 |
SWHF-MG-2X-25-50-0.5K | 26.7±0.45 | 42.5±0.7 | 0.55±0.12 | ≤12.7 | 0.63±0.07 |
SWHF-MG-2X-38-50-0.5K | 39.8±0.51 | 63.2±0.8 | 0.57±0.12 | ≤19.1 | 0.64±0.07 |
SWHF-MG-2X-51-50-0.25K | 53.0±0.56 | 83.9±0.9 | 0.58±0.13 | ≤25.4 | 0.64±0.08 |
SWHF-MG-2X-76-50-0.25K | 79.4±0.56 | 125.3±1.0 | 0.59±0.13 | ≤38.1 | 0.64±0.09 |
Specification: Shrink ratio-3X
Model Number | As Supplied (mm) | After Recovery(mm) | |||
ID(D) | Flatten Width(W2) | Double Wall Thickness | ID(d) | Single Wall Thickness | |
SWHF-MG-3X-1.6-50-2.5K | 2.00±0.20 | 3.7±0.3 | 0.47±0.10 | ≤0.53 | 0.52±0.06 |
SWHF-MG-3X-2.4-50-2.5K | 2.79±0.20 | 5.0±0.3 | 0.47±0.10 | ≤0.79 | 0.57±0.06 |
SWHF-MG-3X-3.2-50-2.0K | 3.64±0.23 | 6.3±0.4 | 0.48±0.10 | ≤1.06 | 0.61±0.06 |
SWHF-MG-3X-4.8-50-2.0K | 5.26±0.25 | 8.9±0.4 | 0.49±0.10 | ≤1.59 | 0.67±0.06 |
SWHF-MG-3X-6.4-50-1.5K | 6.92±0.28 | 11.5±0.4 | 0.50±0.10 | ≤2.36 | 0.71±0.06 |
SWHF-MG-3X-9.5-50-1.0K | 10.2±0.32 | 16.7±0.5 | 0.52±0.11 | ≤3.18 | 0.77±0.06 |
SWHF-MG-3X-12.7-50-1.0K | 13.5±0.36 | 21.8±0.6 | 0.53±0.11 | ≤4.75 | 0.80±0.07 |
SWHF-MG-3X-19-50-0.5K | 20.1±0.40 | 32.2±0.6 | 0.55±0.11 | ≤6.35 | 0.84±0.07 |
SWHF-MG-3X-25-50-0.5K | 26.7±0.45 | 42.5±0.7 | 0.56±0.12 | ≤8.47 | 0.86±0.07 |
SWHF-MG-3X-38-50-0. 5K | 39.8±0.51 | 63.2±0.8 | 0.57±0.12 | ≤12.9 | 0.89±0.07 |
SWHF-MG-3X-51-50-0.25K | 53.0±0.56 | 83.9±0.9 | 0.57±0.13 | ≤17.2 | 0.90±0.08 |
SWHF-MG-3X-76-50-0.25K | 79.4±0.56 | 125.3±1.0 | 0.57±0.13 | ≤25.8 | 0.92±0.09 |
Dimension
Color: Standard color is white and yellow. Other colors are available if ordered.
