Cold Shrink Tubing-SBD-CST
Model Number: SBD-CST
Model Number: SBD-CST
Description

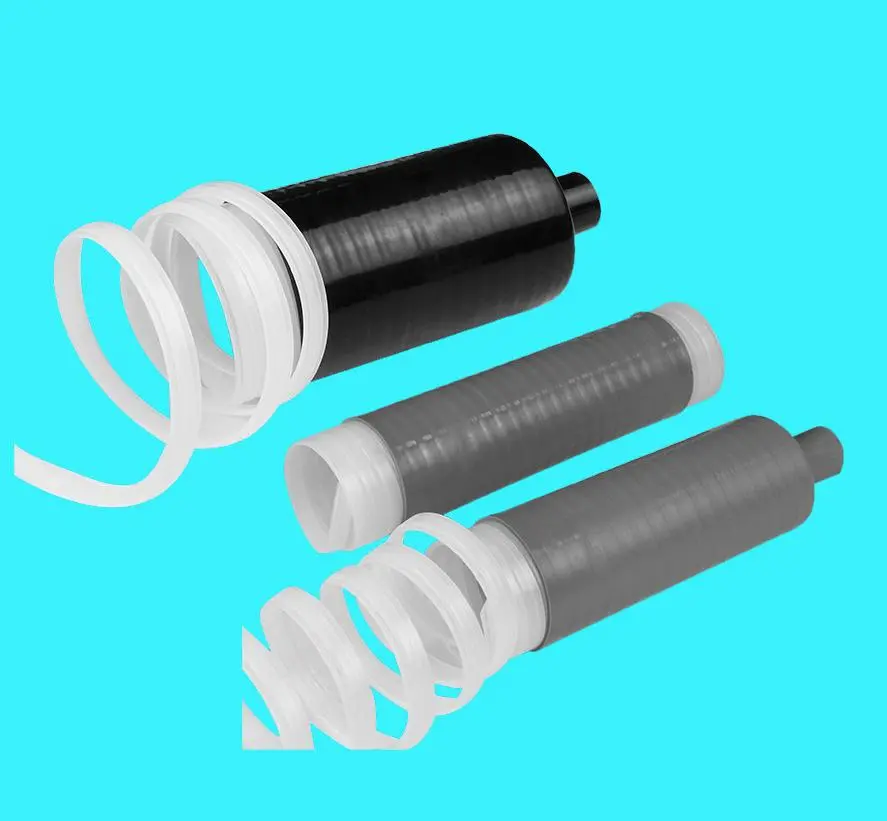

Cold shrink tubings are insulated, open-ended, rubber sleeve which is factory expanded and assembled onto removable plastic cores. The core
is removed after the tubes have been positioned for installation over an inline connection, coupling cable or terminations, allowing the tubes to shrink and form a water resistant seal.
Material: liquid silicon rubber(Grey color)or EPDM rubber(Black color).
Specification
Dimension
Cold Shrink Tube of silicon rubber | ||||
ID* as Supplied (Min) /mm | ID* after Recovered (Max) /mm | Length after Recovered（Nom）/mm | Thickness after Recovered (±10%)/mm | Application Range/mm |
20 | 8 | 80 ~ 450 | 2±0.2 | Ø10 ~ Ø 16 |
28 | 10 | 80 ~500 | 2.5±0.2 | Ø12~ Ø 20 |
32 | 12 | 80 ~490 | 2.5±0.2 | Ø13.2 ~ Ø22.4 |
32 | 13 | 80 ~490 | 2±0.2 | Ø14 ~ Ø24 |
35 | 16 | 80 ~450 | 2±0.2 | Ø18 ~ Ø29 |
40 | 18 | 80 ~450 | 2±0.2 | Ø20 ~ Ø34 |
47 | 21 | 80 ~470 | 2±0.2 | Ø23 ~ Ø41 |
53 | 25 | 80 ~500 | 2±0.2 | Ø27~ Ø47 |
65 | 26 | 80 ~500 | 3±0.2 | Ø28~ Ø50 |
70 | 30 | 80 ~500 | 3±0.2 | Ø32 ~ Ø60 |
80 | 31 | 80 ~500 | 3±0.2 | Ø33 ~ Ø72 |
80 | 36 | 80 ~500 | 3±0.2 | Ø38 ~ Ø72 |
88 | 37 | 80 ~500 | 3±0.2 | Ø39 ~ Ø80 |
104 | 42 | 80 ~500 | 3±0.2 | Ø44 ~ Ø94 |
110 | 38 | 80 ~420 | 6±0.2 | Ø40 ~ Ø100 |
110 | 60 | 80~420 | 6±0.2 | Ø62 ~ Ø100 |
Cold Shrink Tube of General EPDM | |||
Size | Application Range (mm)/(inch) | Length after Recovered (mm)/(inch) | Color |
Φ20 | 8～15/ (0.30～0.59) | 152/ (6) | Black |
Φ25 | 10～20/ (0.39～0.79) | 203～280/ (8～11) | Black |
Φ35 | 14～30/ (0.55～1.18) | 229～280/ (9～11) | Black |
Φ40 | 17.5～33/ (0.69～1.30) | 152～457/ (6～18) | Black |
Φ53 | 25～46/ (0.98～1.81) | 152～457/ (6～18) | Black |
Φ70 | 32～63/ (1.26～2.48) | 152～457/ (6～18) | Black |
Ф104 | 43～94/ (1.69～3.70) | 229/ (9) | Black |
Ф125 | 46～114/ (1.81～4.49) | 229/ (9) | Black |
Ф150 | 55-135/ (2.17～5.31) | 457/ (18) | Black |
Cold Shrink Tube of High Shrinkage Ratio EPDM | |||
Size | Application Range (mm)/(inch) | Length after Recovered (mm)/ (inch) | Color |
Φ35 | 12.5～30/ (0.49～1.18) | 229～279/ (9～11) | Black |
Φ40 | 14～33/ (0.55～1.30) | 152～406/ (6～16) | Black |
Φ53 | 19～46/ (0.75～1.81) | 152～457/ (6～18) | Black |
Ф60 | 20.5～51/ (0.81～2.01) | 254/ (10) | Black |
Ф70 | 25～63/ (0.98～2.48) | 152～457/ (6～18) | Black |
Ф80 | 27.4～70/ (1.08～2.75) | 325/ (13) | Black |
