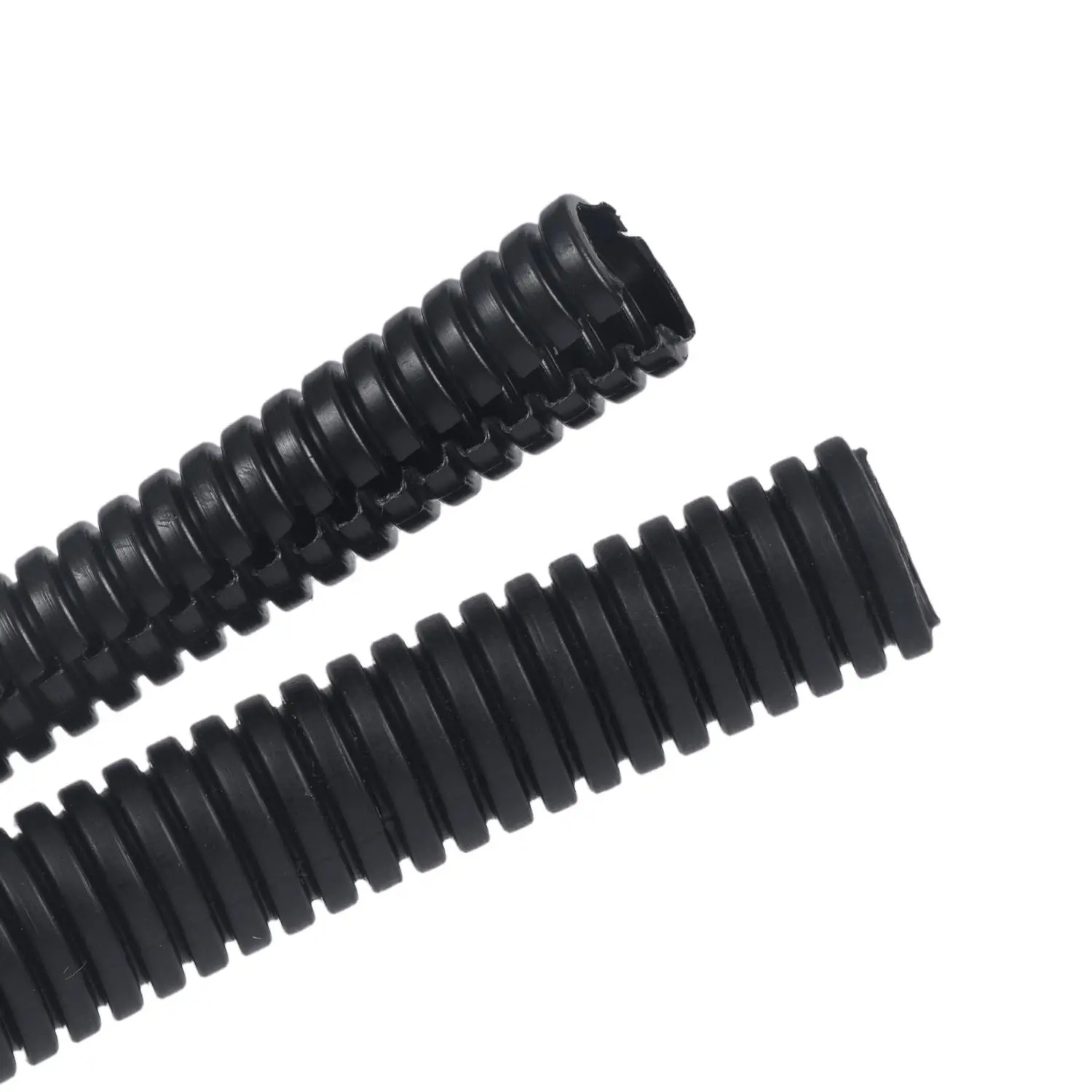

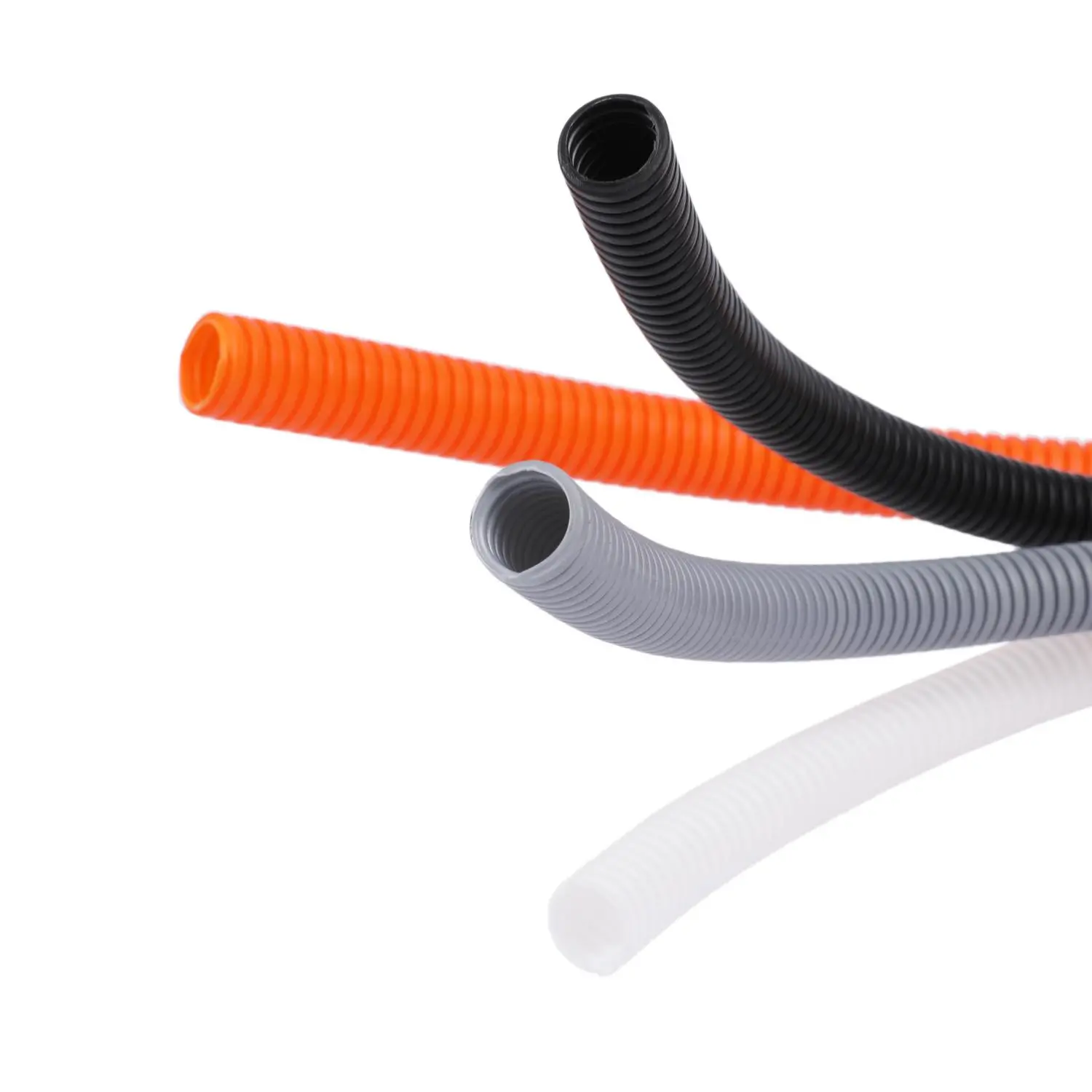

Seal Type Corrugated Pipe
SB-STCP（seal type）
Model Number: SB-STCP（seal type）
Working temperature:
-30ºC ~ +100ºC (PE material)
-40ºC ~ +110ºC (PP material)
-40ºC ~ +125ºC (PA material)
Performance
Good flexibility, abrasion resistance, acid resistance, fire resistance, etc.
Structure: wavy shape both interior and exterior.
Usage
It can be used in machinery, electrical equipment, foodstuff machinery, automatic meters and gauges and motors as abrasion and insulation protection for cables.
Specification
Dimension
Material | Item No. | Size (mm) | Packing | |
Inner Diameter | Outer Diameter | |||
PE, PP, PA Seal Type Corrugated Pipe
| AD7.0 | 5.0 | 7.0 | 500 |
AD7.5 | 5.5 | 7.5 | 500 | |
AD9.0 | 6.0 | 9.0 | 500 | |
AD10.0 | 7.0 | 10.0 | 500 | |
AD11.0 | 8.0 | 11.0 | 500 | |
AD12.0 | 9.0 | 12.0 | 500 | |
AD13.0 | 10.0 | 13.0 | 500 | |
AD14.0 | 11 | 14 | 200 | |
AD15.8 | 12.0 | 15.8 | 200 | |
AD18.5 | 14.3 | 18.5 | 200 | |
AD19.0 | 15 | 19 | 200 | |
AD21.2 | 17.0 | 21.2 | 200 | |
AD22.0 | 18.0 | 22.0 | 100 | |
AD23.0 | 19.0 | 23.0 | 100 | |
AD25.0 | 20.0 | 25.0 | 100 | |
AD27.0 | 22.0 | 27.0 | 100 | |
AD28.5 | 23.0 | 28.5 | 100 | |
AD30.0 | 25.0 | 30.0 | 100 | |
AD32.0 | 27.0 | 32.0 | 100 | |
AD34.5 | 29.0 | 34.5 | 100 | |
AD42.5 | 36.0 | 42.5 | 50 | |
AD54.5 | 48.0 | 54.5 | 25 | |
*Other sizes could be customized.
